Acoustic panels
Polyester Fiber Acoustic Insulation

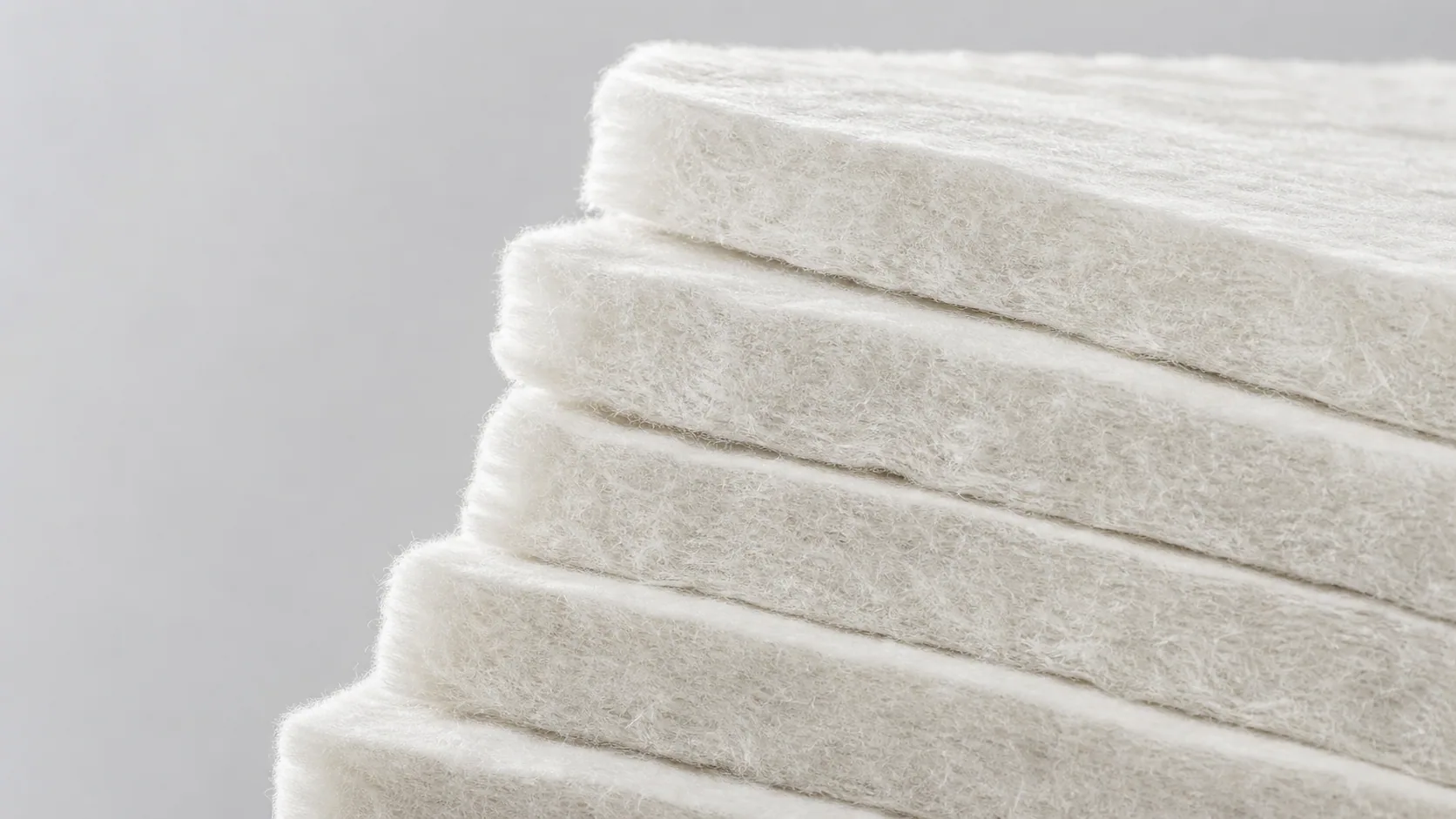

Build the cavity, not the surfaceCross-lapped polyester fibre batts engineered for efficient sound absorption within walls and ceilings. Designed to work inside the assembly where it matters most.
Discuss your build-upWall / ceiling section
Assembly logic that performs

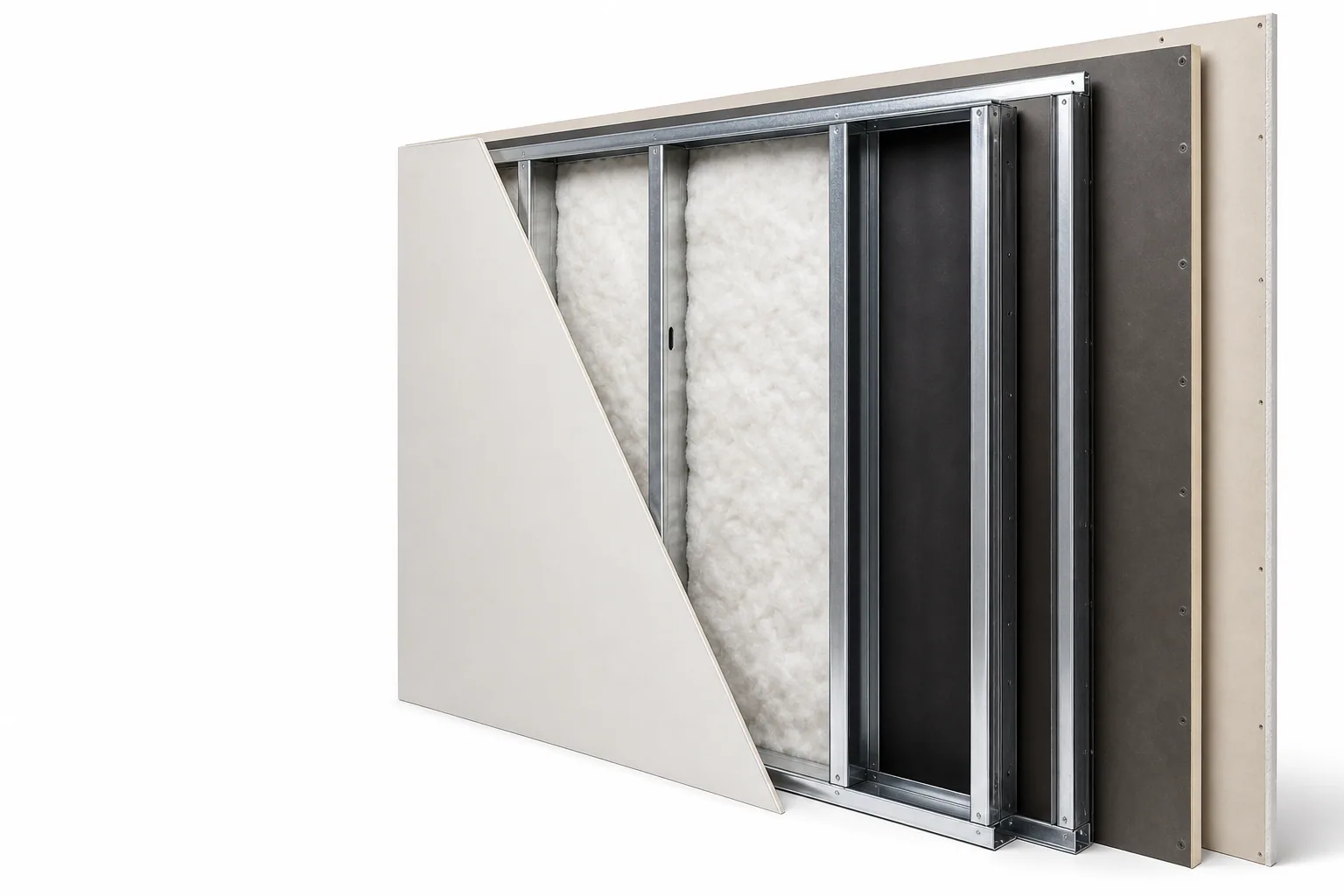

- Finish layere.g., gypsum board
- Mass / barrier layeroptional
- Metal stud framework
- Polyester fiber acoustic insulation
- Cavity space
- Base layersubstrate

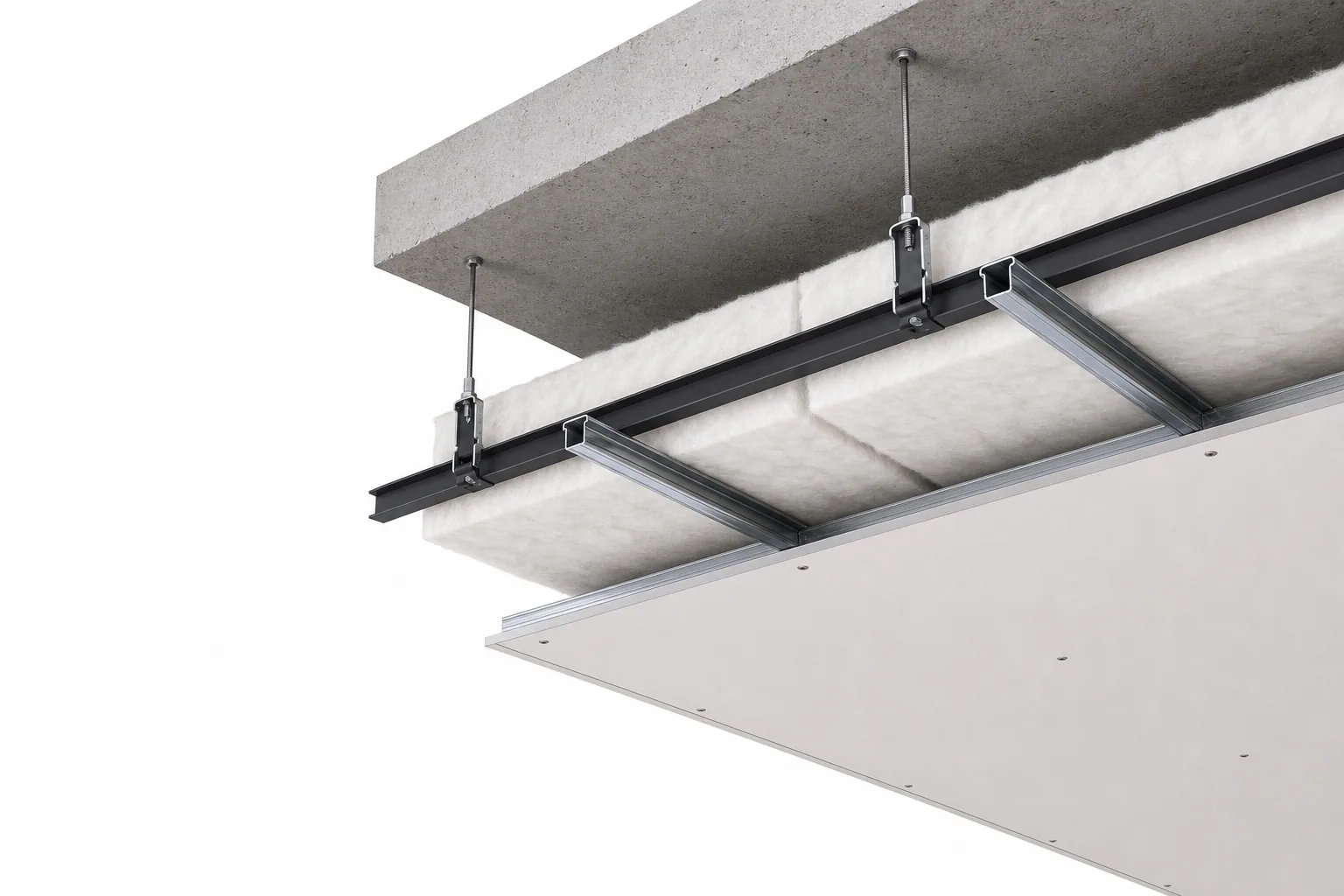

- Ceiling finishe.g., gypsum board
- Resilient channeloptional
- Metal furring channel
- Polyester fiber acoustic insulation
- Primary structureslab / joist
Choose density by assembly
Typical configurable options. Confirm the final specification in the order documentation.
Higher density and thickness can increase low-frequency absorption potential. Confirm with project-specific testing and overall system design.
Supplied performance
| Density (kg/m³) | Thickness (mm) | Application | Acoustic function |
|---|---|---|---|
| 32 | 50 / 80 / 100 | Ceilings, light partitions | Mid–high frequency absorption |
| 48 | 50 / 80 / 100 | Walls, ceilings, studios | Balanced broadband absorption |
| 60 | 50 / 80 / 100 | Walls, cinemas, classrooms | Enhanced low-frequency control |
| 80 | 50 / 80 / 100 | Critical spaces, cinemas | High absorption across low–mid range |
| 96 | 50 / 80 / 100 | High-performance assemblies | Maximum absorption potential |
Evidence status
This product requires independent application and test evidence for your specific build-up.
Our technical team can support you with test planning, data packages and project documentation.

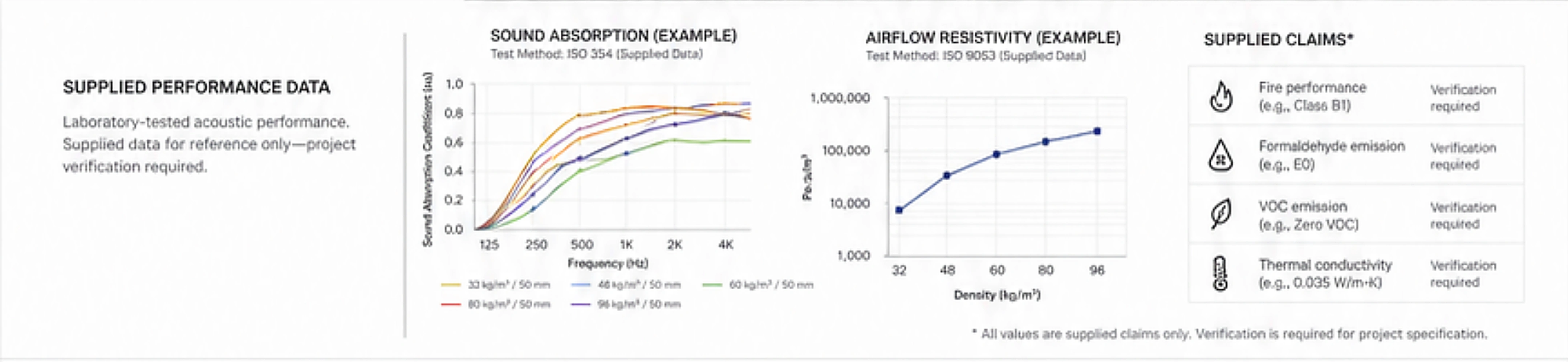

Discuss your build-upDetailed supplied performance data
Reference values and claims remain subject to project verification
Acoustic performance depends on the selected thickness, backing material, air cavity and tested installation build-up. Confirm the required specification before ordering.
- Fire performanceConfirm for the selected orderVerification required
- Formaldehyde emissionConfirm for the selected orderVerification required
- VOC emissionConfirm for the selected orderVerification required
- Thermal conductivityConfirm for the selected orderVerification required
* All values are supplied claims only. Verification is required for project specification.
Material anatomy

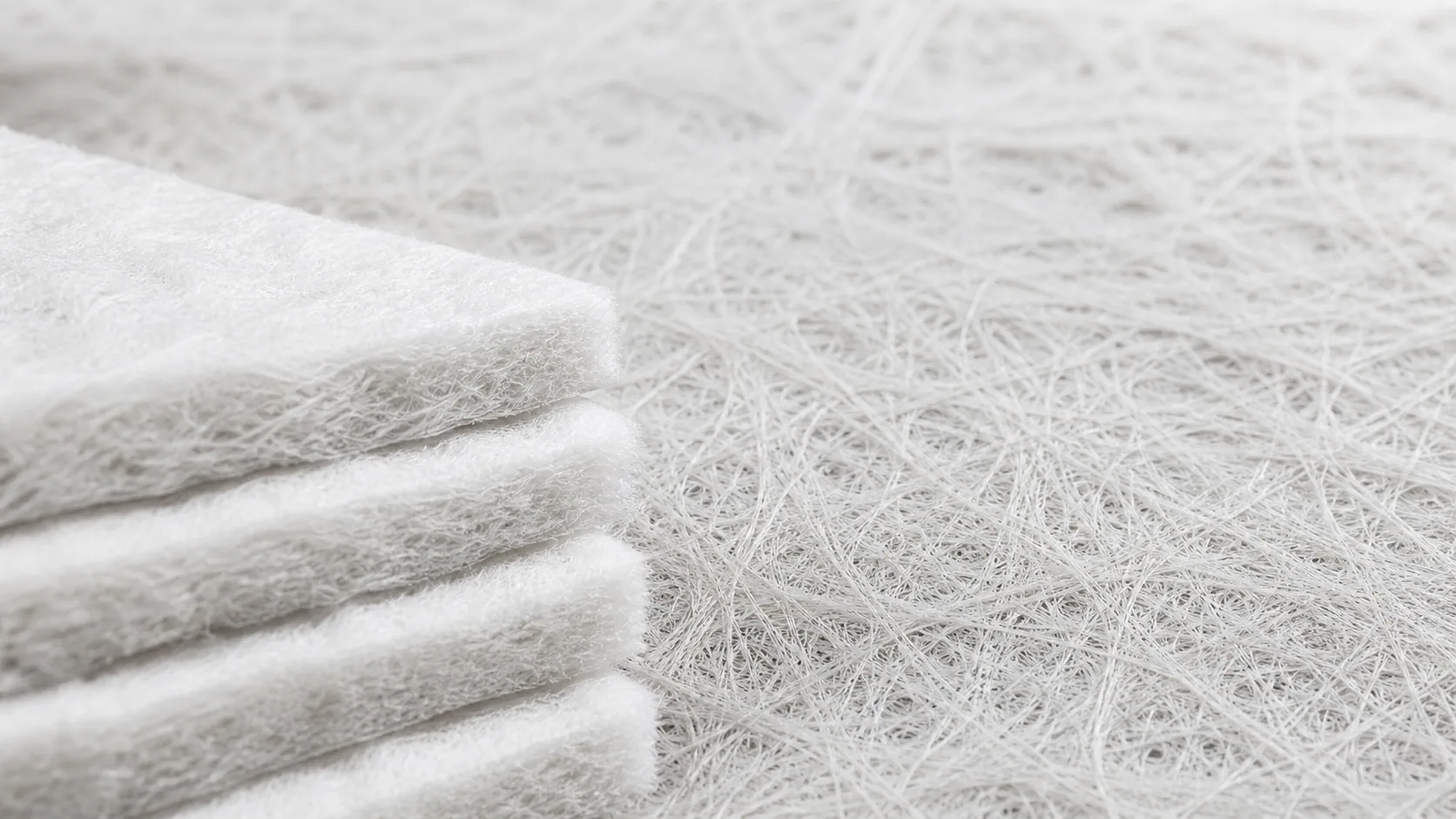

Cross-lapped polyester fibres create interconnected voids that convert sound energy into heat through friction and air movement.

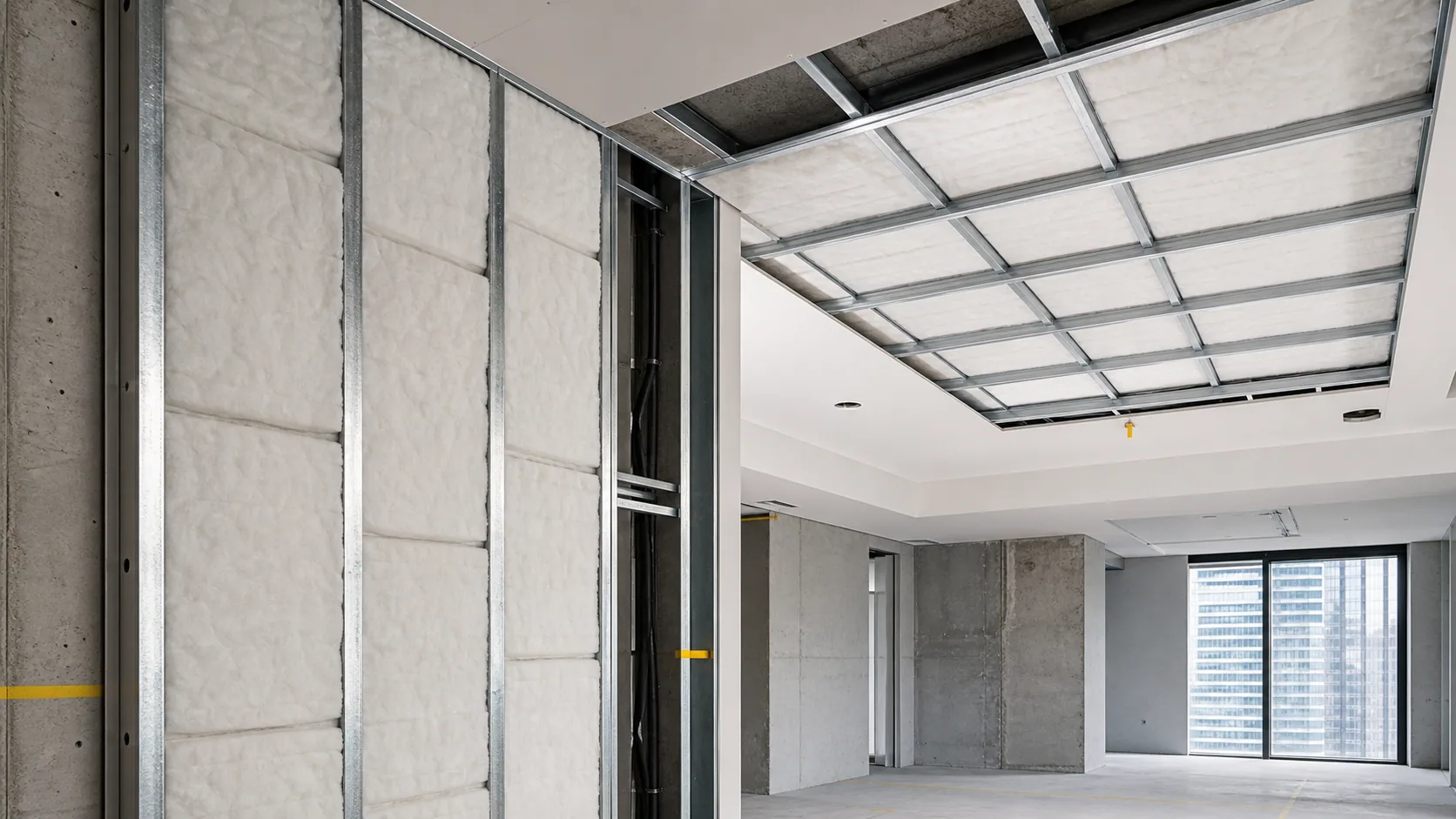

Applications
Versatile across demanding acoustic environments
Frequently asked questions
Questions before selecting Polyester Fiber Acoustic Insulation.
Clear the material, mounting and evidence questions before the product is released into a project.
Select density and thickness against the intended cavity, target absorption range and the approved wall or ceiling assembly.
Confirm the current product code, dimensions, finish, mounting method, acoustic test conditions and fire evidence against the exact proposed build-up.
Wall and ceiling applications require the exact build-up, cavity depth, linings, support system and current test evidence to be confirmed before release.
Send the room type, drawings or elevations, substrate, target programme and any required compliance information. The project team can then identify the documents and sample route needed for review.
